SCOPE

Model Number and Equipment Name. M203 Grenade Launcher

PURPOSE OF EQUIPMENT. The grenade launcher M203 was designed to be used with the M16A1 rifle, can be field-stripped in a hurry without special tools, and fires a 40-mm grenade


TABLE OF CONTENTS Page
INTRODUCTION 1-1
General Information 1-1
Equipment Description 1-2
Technical Principles of Operation 1-5
OPERATING INSTRUCTIONS 2-0
Description and Use of Operator’s Controls and Indicators 2-0

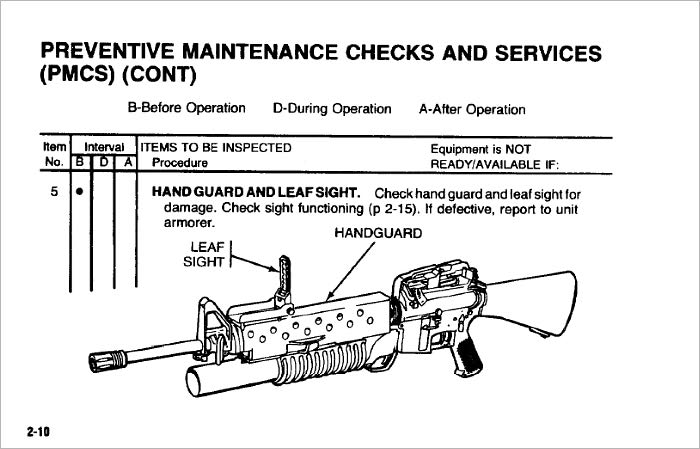

Preventive Maintenance Checks and Services (PMCS) 2-5
Operation Under Usual Conditions 2-13
Operation Under Unusual Conditions 2-27
Nuclear, Biological and Chemical (NBC) 2-28
MAINTENANCE INSTRUCTIONS 3-1
Lubrication instructions 3-1
Troubleshooting Procedures 3-2
Maintenance Procedures 3-3
CHAPTER 4 AMMUNITION 4-1
Section I. General Information 4-1
Section Il. Types of Ammunition 4-2
Section Ill. Care and Preservation 4-5
APPENDIXA REFERENCES A-0
APPENDIX B COMPONENTS OF END ITEM
AND BASIC ISSUE ITEMS LISTS
APPENDIX C ADDITIONAL AUTHORIZATION LIST
APPENDIX D EXPENDABLE/DURABLE SUPPLIES AND MATERIALS LIST D-1
